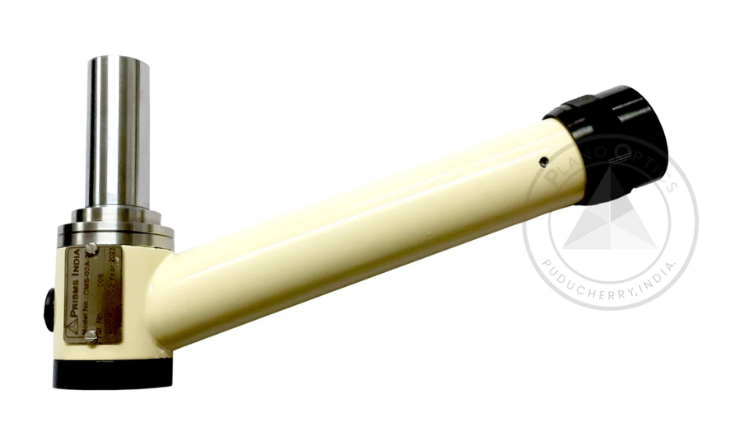

Centering Microscope
The Centering Microscopes are designed for job set-up and inspection with vertical milling machines, large jig borers, boring mills, lathes, electrical discharge machines, tape-controlled machines, drill presses.Titan Centering Microscopes have an upright image, optically correct from left to right so that the operator sees the workpiece with the microscope the same as without it, mistakes due to transposing or converting are eliminated.
| CMS-02 | CMS-03A | CMS-03B | |
|---|---|---|---|
| Object Magnification | 2X | 4X | 4X |
| Eyepiece Magnification | 13X | 13X | 13X |
| Shaft Diameter | 20 mm | 20 mm | 20 mm |
| Graticule | 24 concentric circle of diameter 0.5 mm steps. | 16 concentric circle of diameter 0.5 mm steps. | 16 concentric circle of diameter 0.5 mm steps. |
| Graticule Line Thickness | 10 to 12 microns | 10 to 12 microns | 10 to 12 microns |
| Angle of View | 70º | Along the axis | 45º |
| Weight | 500 g | 550 g | 550 g |
| Field of view | 6 mm | 1 mm | 1 mm |
| Working Distance | 28 mm | 33 mm | 40 mm |
| Illumination | White LED | Nil | Nil |
| Centering Accuracy | Less than 10 microns | Less than 10 microns | Less than 10 microns |
