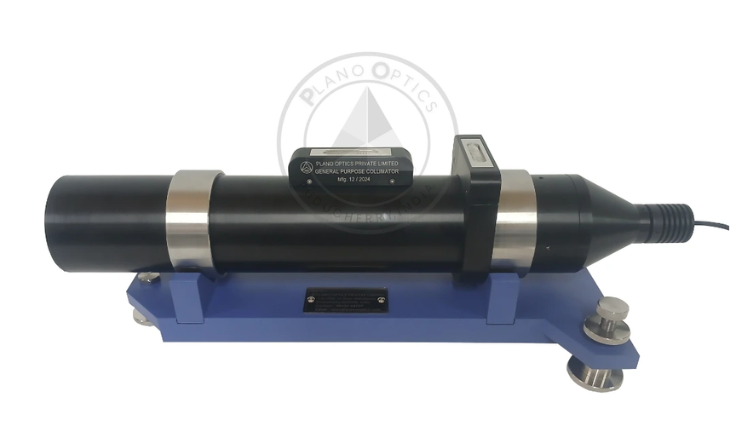

GP Collimator
| Effective Focal Length | 360 mm |
| Clear Aperture | 60 mm |
| Field of view | 4 Degrees |
| Collimator Tube | Hardened Steel |
| Light Source | LED with intensity control |
| Target Graticule | Definition type 25 mm diameter |
| Levels | Horizontal +/-20”; Vertical < +/-5 minutes |
| Optical axis | w.r.t the OD of collimator tube: < 10 secs |
| Reticule Verticality | 5 minutes w.r.t a Plumb line |
| Horizontal Stand | With V-Mounts and three levelling screws |
